Description

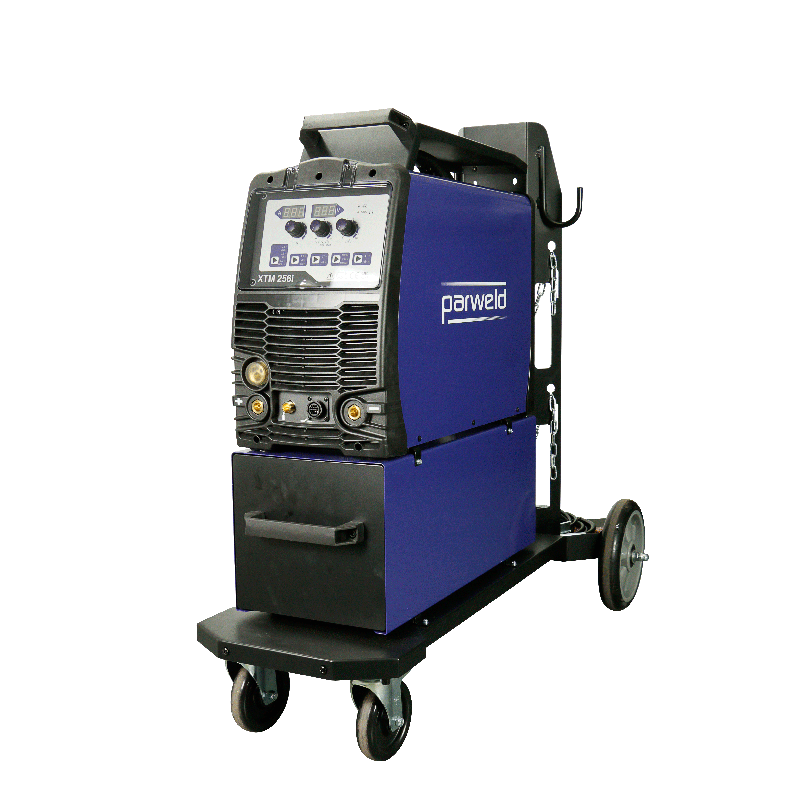

The XTM 256i three phase MIG Inverter is a high performance multi-process power source capable of MIG, Lift TIG, and MMA welding. The LED digital displays show all parameters and data in real time. The machine has built in synergic control, so welding parameters will adjust automatically when the current is changed, making it easy to operate. The XTM 256i Power Source Welding Machine comes ready assembled to the TR008 Trolley, which is equipped with a convenient practical drawer attachment.
Get free shipping when you order online now.

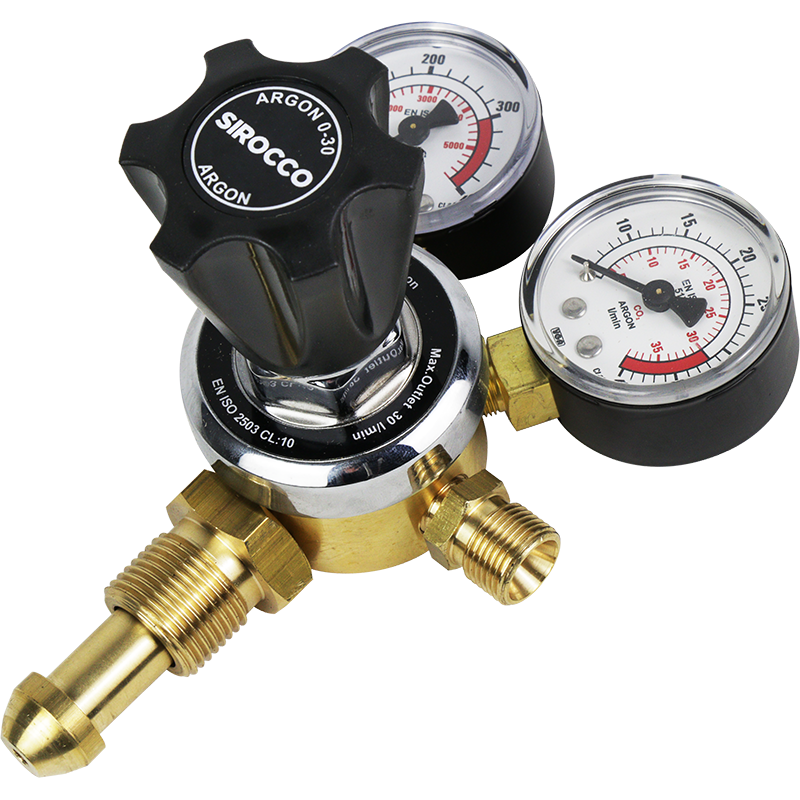

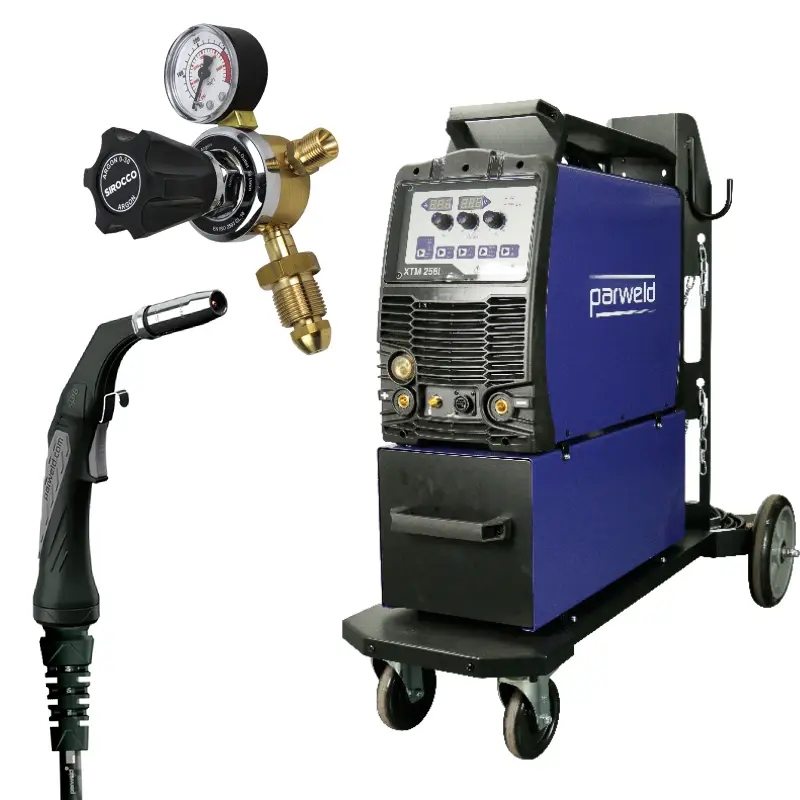

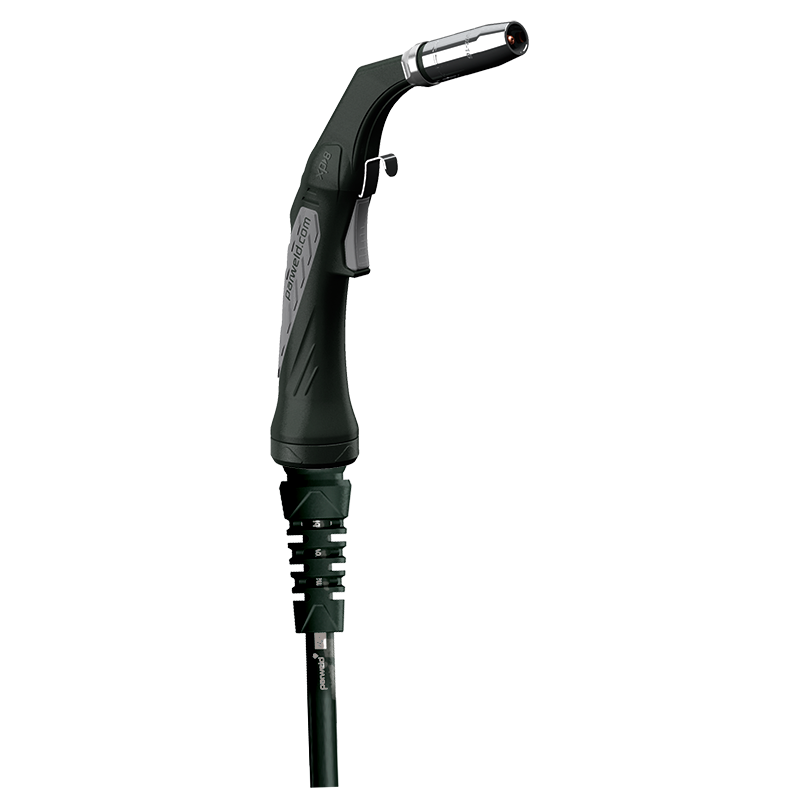

This machine is part of a bundle including a XP200A Torch and a 700123 Gas Regulator at no additional cost.
Power Requirements: 3-Phase Connection
Please note that this product is designed for efficient and high-performance operation with a 3-phase power supply. Ensure your facility has a compatible 3-phase electrical system before installation. This connection type is essential for the product’s optimal functionality and safety standards. If you are unsure about your current electrical setup, please consult a professional electrician for assessment and advice.
Key Features Include:
- Multi-Process MIG/TIG/MMA Welding
- 400V Three Phase Machine
- Quick and Easy Selection of Welding Processes, Control type, Material and Wire Size
- Synergic Control
- Fan On Demand
- 2T / 4T Trigger Latching
- Real Time Display of Parameters and Data
- Soft Switching Technology for improved efficency
- Clear Visor for Front Panel Controls Protection
- Supplied with Gas Hose and 3m Earth Lead
Technical Information:
| Style | Portable |
| Machine Type | Inverter MIG/TIG/MMA |
| Voltage Range | MIG 14.5-26.5V TIG 10.4-20V MMA20.4-30V |
| Spool Size | 300mm (15kg) 200mm (5kg) |
| Feed Box | 4 Roll |
| Wire Size | 0.6-1.2mm |
| Duty Cycle | 250A @ 35% |
| Input Voltage | 400V (3-Phase Power) |
| Maximum Current | 250A |
| Input Current (Eff) | MIG – 9.3A TIG – 7.9A MMA – 10.9A |
| Minimum Fuse Rating | 20A |
| KVA | 11.6 |
| Generator Size | 13 KVA |
| Enclosure Protection | IP23S |
Generator requires AVC
