Description

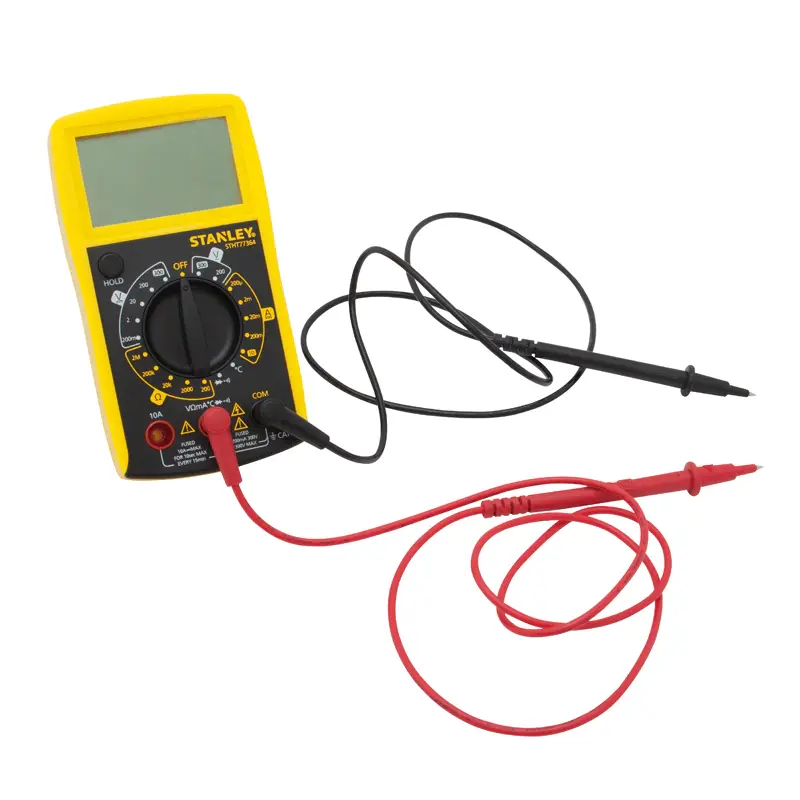

The Stanley Multi-meter is an AC/DC digital meter designed for voltage, amperage & resistance powered by a 9V battery which is supplied. The unit features 7 functions and 20 ranges, rated from Category 3 standards.
Features & Benefits
- 7 functions and 20 ranges, rated for Category 3 standards (CAT III)
- Easy to read LCD screen with large numbers
- Unit stand for a stable hands free use
- Comfortable ergonomic design with a rugged over molded housing adds to shock resistance
- Temperature : 0~1000°C
- Battery testing – Tests AAA, AA, C, D, 1.5 volt, button cell, and 9 volt batteries
- Voltage AC: 200V/300V Voltage DC: 200mV/2000mV/20V/200V/300V
- Continuity : <30Ω
- Current DC : 200μ/2000μ/20m/200m/10A
- Diode Check : 2,8V/1mA
- Resistance 200Ω/2000Ω/20kΩ/200kΩ/2000kΩ
- Runs on 1 x 9V battery (supplied)
