Description
- Recommended tapping drill size = 4.2mm
- Threadsize (D) = M5 x 0.8
- Overall Length (L1) = 58mm
- Working Length (L2) = 16mm
- Shaft Diameter (D2) = 5.0mm
- Drive Square Size (□) = 4.0mm
Straight flute for general use
Use with non abrasive material up to 900 N/mm2, unalloyed and low alloyed steel
For thread cutting by hand and by machine
Highest quality European manufactured
Metric ISO-thread DIN 13, ISO 529, HSS-G,Tolerance ISO2/6H

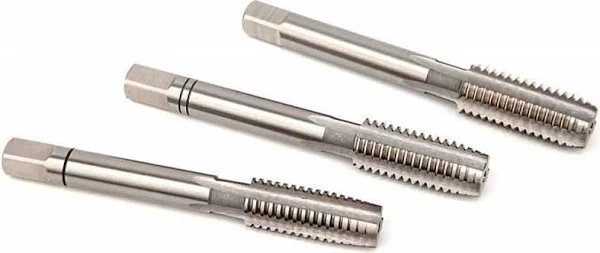

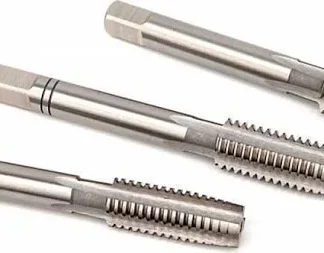

Available in taper, second and plug (bottom) taps. Sets include one of each.
